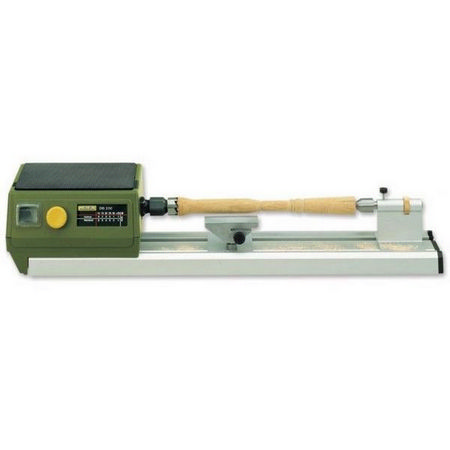

Proxxon DB 250 Micro Woodturning Lathe 27020
Turning in miniature is a pleasing hobby. One can make glasses, cups, saucers, vases and columns for a doll house. In model trains, one can make lighting masts, windows, tanks. Limbs for marionettes and hundreds of classical miniature turning tasks may be carried out with ease.
Ball bearing spindle is bored through at 10mm. For series production of small parts.
The stable tool rest is adjustable in all directions.
A face plate for turning larger items is included.
Powerful drive motor with speed control between 1,000 and 5,000rpm.
The bed is made from stable, thick-walled aluminium profile
Tailstock with quill travel.
Technical data:
Centre distance of 250mm, 40mm swing. 25mm swing over support. Motor 220 - 240V, 100W, 50/60Hz. Variable speed control covering between 1,000 and 5,000rpm. Headstock spindle bore of 10mm. Tailstock travel 20mm. Includes 6 collets (2 - 3 - 4 - 6 - 8 - 10mm), drive centre, live centre and face plate.
