Proxxon MT 400 Micro Shaper
For profiling, slotting, milling, chamfering, trimming and separating. Also enables precise machining of sides and long sections (for model building,
e.g. for doors, flaps and housing parts).
Powerful dust-protected motor with toothed belt drive. Double ball-bearing spindle. Tool holder with triple slitted precision collets (includes 3 pieces for 2.4 - 3.0 and 3.2mm). Milling cutter height adjustment by hand wheel and scale ring adjustable to 0 (1 revolution = 1.0, 1 graduation line = 0.05mm). Stable aluminium table with longitudinal and angle stop as well as cutter guard and hold-down. Housing of ABS. Adapter for vacuum cleaner fits standard household vacuum cleaners.
Technical data:
220 - 240V. 100W. 50/60Hz. 25,000rpm. Cutting table 300 x 150mm, Weight approx. 2.0kg.

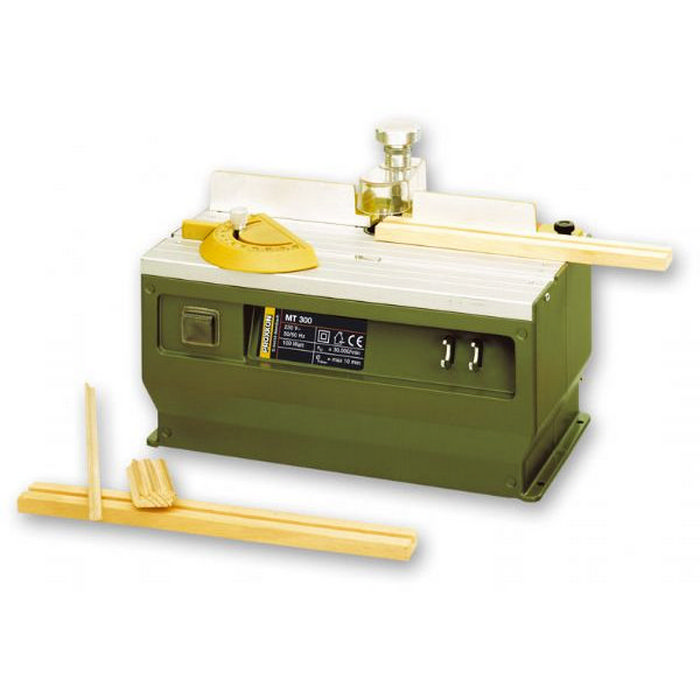

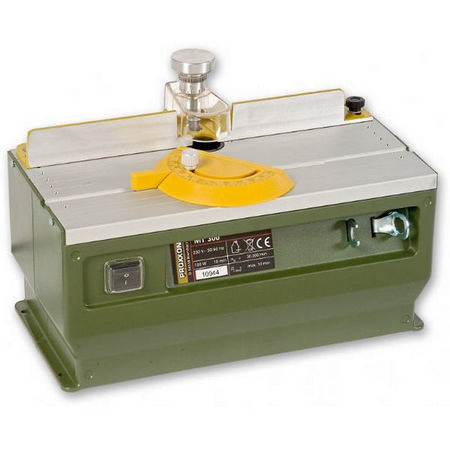

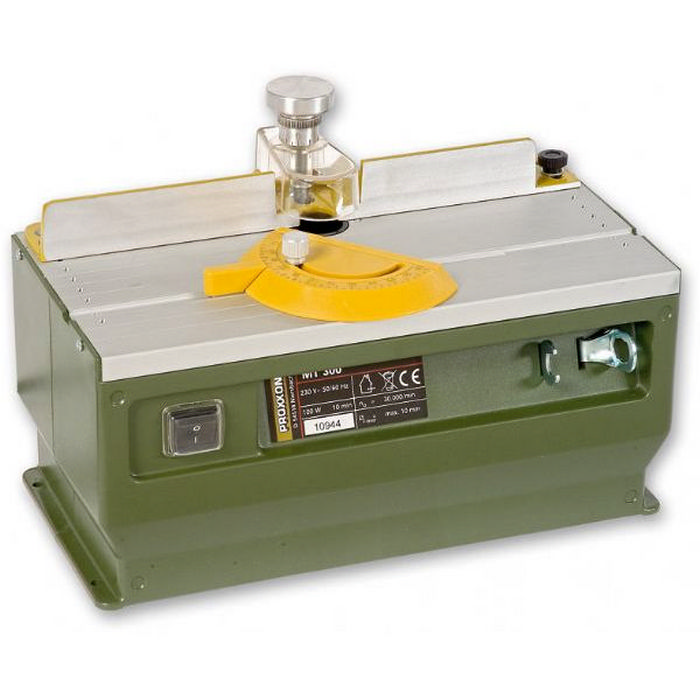

Image and video show the MP300 Micro Shaper which has been replaced by the MP400 Micro Shaper.
