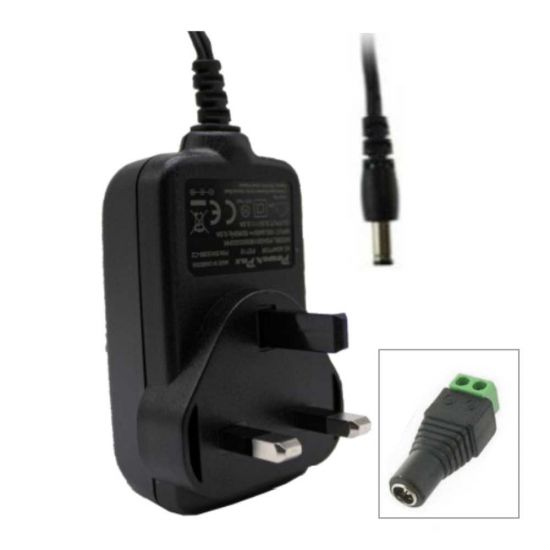

Dolls house lighting transformer (power supply). Output 12V DC 2.0A
Suitable for medium to large size dolls houses with up to 28 screw-in or 40 wire ended bulbs.
The output lead has a 2.1mm plug for easy connection to corresponding socket connectors. Recommended for use with connector strips BE295, BE296, BE296S, BE297, BE297S.
Important Safety Information
Dolls house wiring and lighting components are generally rated for 1.5A - 2.0A. This power supply should only be used with a suitably fused connector strip. If exceeding 1.5A - 2.0A load, this should be split between separate fuse protected circuits to avoid overloading wiring and components. Do not attempt to install dolls house wiring systems without suitable knowledge and experience. Do not leave dolls house lighting switched on unattended. Switch power off at the wall when not in use or when unattended.

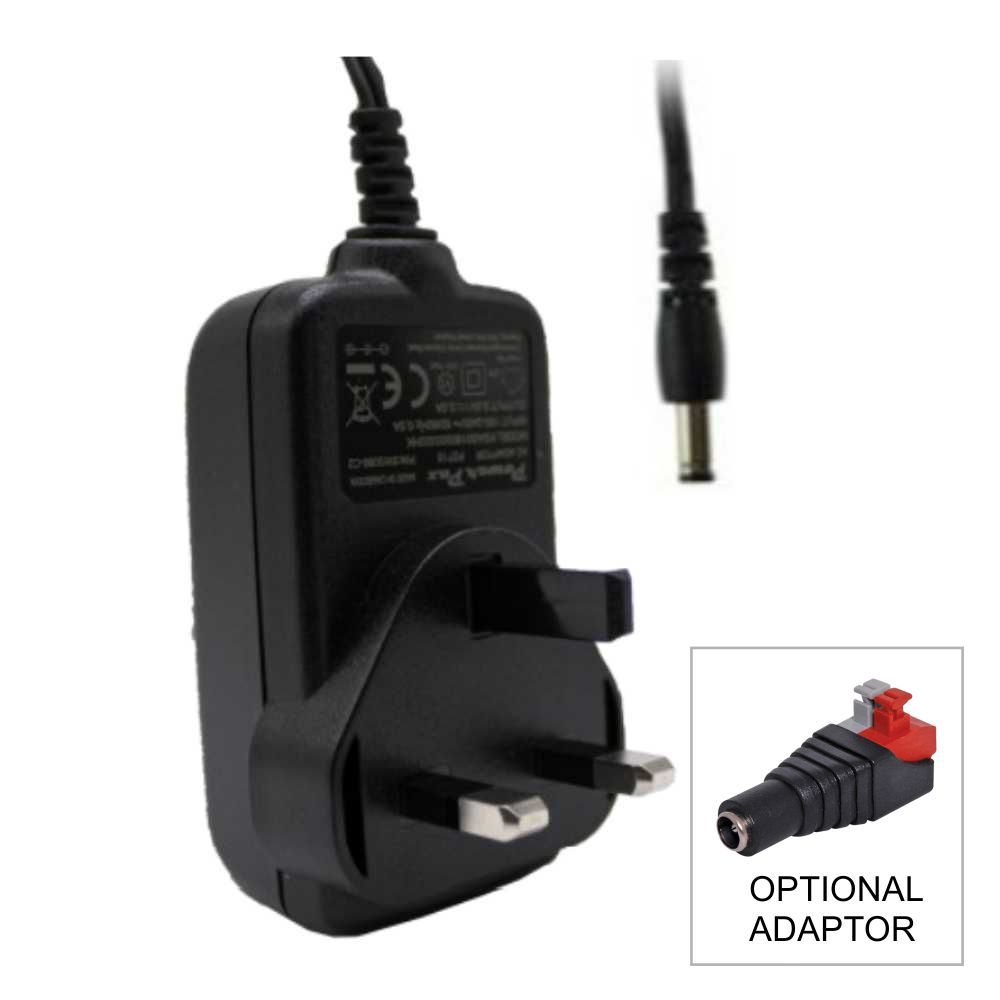

Important Note: The optional screw terminal adaptor has a maximum current rating of 1 amp. This adaptor should not be used in applications where this current may be exceeded.
Specifications
Input: 90 - 264 V, 47 - 63 Hz
Output: 12 V, 2.0 A (24 Watt)
Digital Switching; Regulated output; Overload protected.
CE Approved and meets the latest Level VI energy efficiency regulations.
Dolls House Power Supply vs Transformer
The choice of dolls house Power Supply is very important to the safe and reliable working of dolls house lights. We recommend using Regulated DC Electronic Power Supplies. These units can handle a very wide range of loadings whilst maintaining a constant supply to the Dolls House, giving long bulb life. This controlled voltage stability is particularly important when using our Flickering Fire Effect units as the total lighting load on the Power Supply varies so with poor quality transformers flickering of all the lights in the house can occur. Also,thesePower supplies use Digital Switching (Switch-Mode) Technology. The benefits of this are light weight, small size and cool running of the power supply, giving improved reliability, efficiency and long life.
See our dolls house lighting instructions for wiring instructions.
