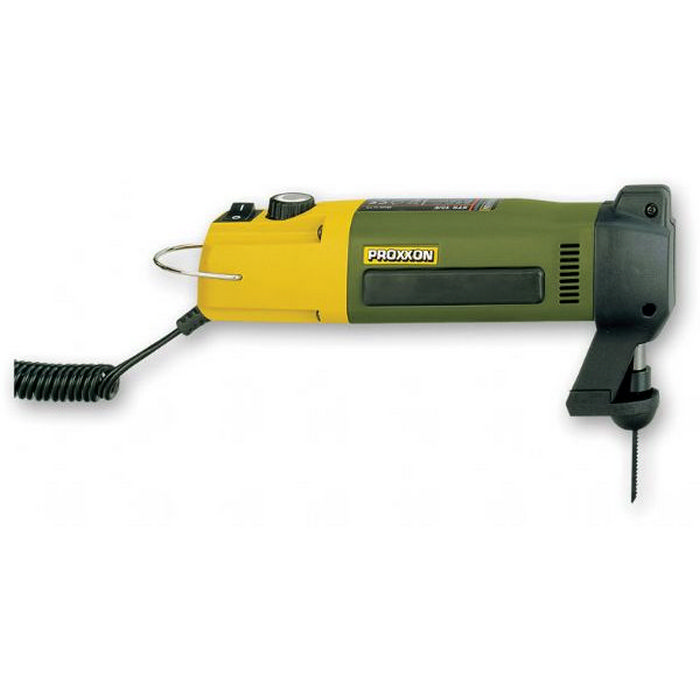

Proxxon STS 12/E Jigsaw
Precise curved cutting in wood, printed circuit cards and non-ferrous metals. With powerful special DC motor.
Ideal for curved sawing of wood (up to 10mm), printed circuit boards (up to 3mm), and non-ferrous metal (up to 2.5mm).
Powerful special low noise DC motor with high life expectancy. Variable speed control with feedback effect (high engine power in the lower speed range). Housing of glass-fibre reinforced POLYAMIDE. With additional ball adapter for working on convex and concave surfaces. Is exchanged for the normal saw table by unscrewing a screw. Includes 2 saw blades (coarse and fine). We recommend MICROMOT mains adapters as of 2.0A for operation.
Technical data:
Direct voltage 12 - 18V. Maximum power consumption 100W. Stroke 6mm (adjustable from 2,000 - 5,000rpm). Length 180mm. Weight 480g.
Requires Proxxon 12V power supply - available separately.
Note:
The speed control of our 12 volt devices only works when operated via non-stabilised power supply units (e.g. all MICROMOT mains adapters). Connection to stabilised power supply units is possible. However, the devices will then operate with maximum rotational speeds (also applies to operation with batteries).
