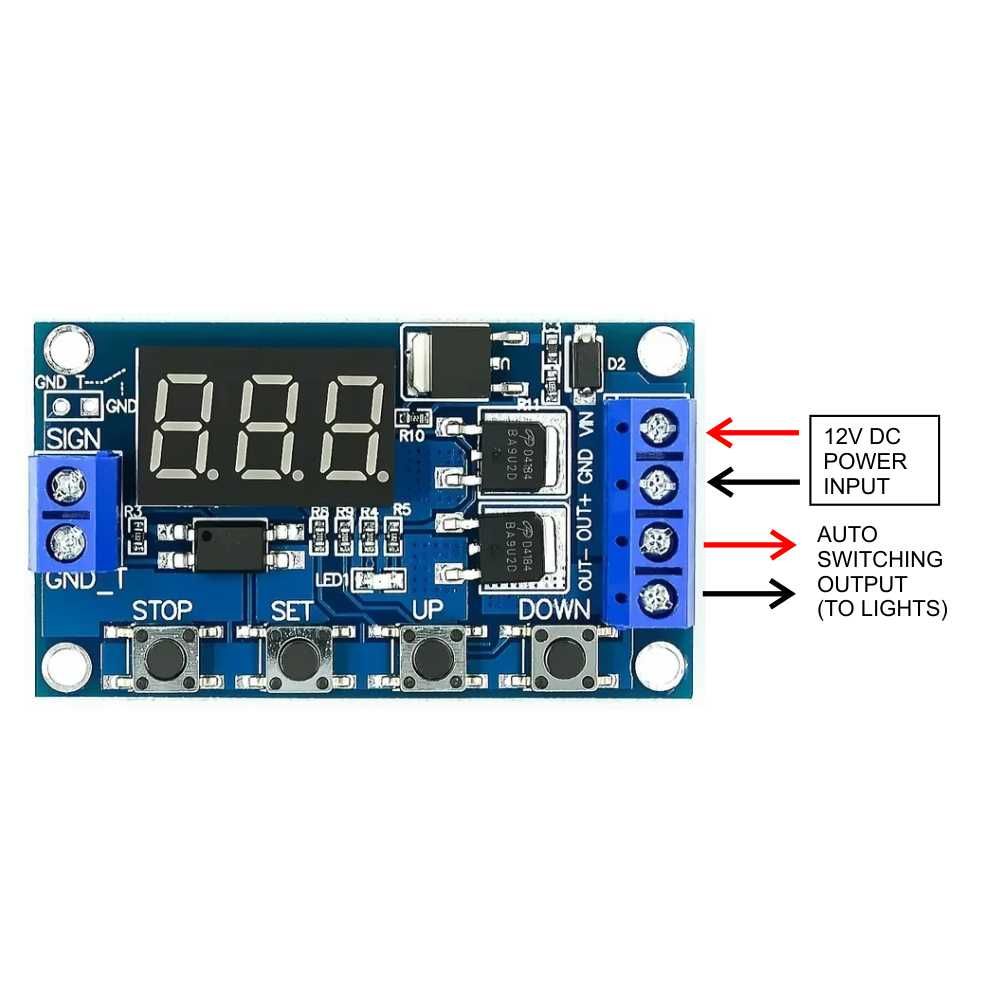

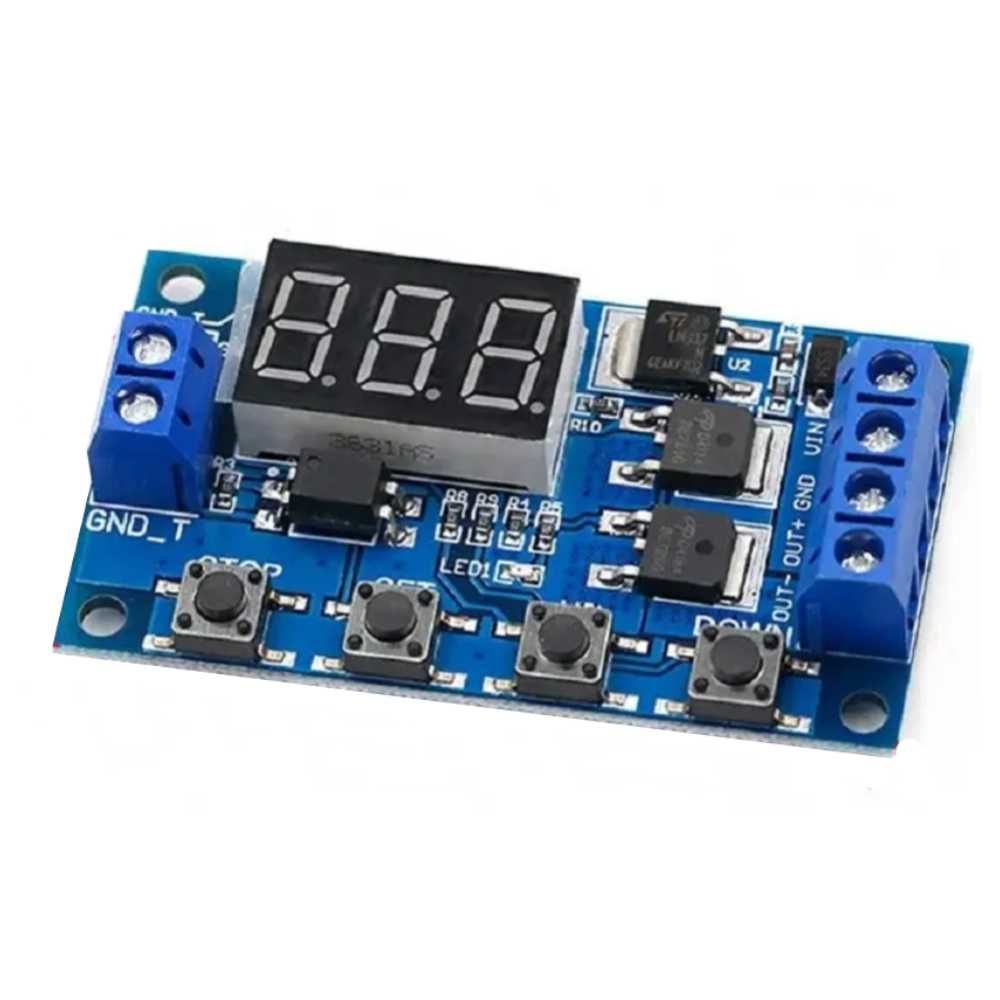

This is a general purpose programable delay timer can be used to automatically switch dolls house lights on and off at pre-set intervals. This can enhance dolls house lighting systems, for example by switching supplementary lighting such as a table lamp on for a few minutes at chosen intervals. Or it can be used to switch the lighting in one or more rooms on for a number of minutes at chosen intervals. It's just a matter of connecting the lights which are to be switched to the timer output and setting the desired on & off duration.
The timer has several modes of operation, but for dolls house lighting use we recommend using one specific mode which automatically switches on and off on a continuous loop all the while power is connected. The mode, 'on' duration and 'off' duration can each be set to anything from 0.1 seconds up to 999 minutes (16 hours and 40 minutes) using the setting buttons and LED display. Once set up the timer will remember the settings so does not need to be re-set every time it is turned on. The LED display will switch off after a short period when 'sleep' mode is set.
Includes mounting screws and Instructions. Setup is relatively straightforward, but basic wiring knowledge is required.
Usage Examples
Power: 12V DC (5V~36V).
Note: The module is an active output, the output voltage equal to the input voltage.
Quiescent Current: 20mA
Operating Current: 50mA
Working Temperature: -40℃~85℃
Clocking (Time Delay) Range: 0.1seconds to 999minutes
Output Capacity: DC 5V~36V, at room temperature, continuous current is up to 15A.
Dimensions (WxDxH): 60mm x 34mm x 12mm
Important Safety Information
Dolls house wiring and lighting components are generally rated for 1.5A - 3.0A. This connector strip should only be used with a suitable power supply and lighting components. If exceeding 1.5A - 3.0A load, this should be split between separate fuse protected circuits to avoid overloading wiring and components. Do not attempt to install dolls house wiring systems without suitable knowledge and experience. Do not leave dolls house lighting switched on unattended. Switch power off at the wall when not in use or when unattended.
